Product Description
Technical parameter
|
Model |
1P Slow Speed |
2P Slow Speed |
3P Slow Speed |
5P Slow Speed |
5P Increase Slow Speed |
7P Slow Speed |
|
Motor brand |
士元/万鑫（台湾） |
士元/万鑫（台湾） |
士元/万鑫（台湾） |
士元/万鑫（台湾） |
士元/万鑫（台湾） |
士元/万鑫（台湾） |
|
Power |
1.1KW |
1.5KW |
2.2KW |
3.7KW |
3.7KW |
3.7KW |
|
Electrical brand |
施耐德电气 |
施耐德电气 |
施耐德电气 |
施耐德电气 |
施耐德电气 |
施耐德电气 |
|
Button switch |
一佳按钮 |
一佳按钮 |
一佳按钮 |
一佳按钮 |
一佳按钮 |
一佳按钮 |
|
Blade material |
SKD-11 |
SKD-11 |
SKD-11 |
SKD-11 |
SKD-11 |
SKD-11 |
|
Heat treatment |
61度 |
61度 |
61度 |
61度 |
61度 |
61度 |
|
Fixedknife |
6把 |
6把 |
8把 |
8把 |
8把 |
10把 |
|
S knife |
2把 |
2把 |
3把 |
3把 |
3把 |
4把 |
|
Pineapple Knife |
3把 |
3把 |
4把 |
4把 |
4把 |
5把 |
|
Rotation speed |
23转/分 |
23转/分 |
23转/分 |
23转/分 |
23转/分 |
23转/分 |
|
Crushed particles |
5mm-6mm |
5mm-7mm |
5mm-7mm |
5mm-7mm |
5mm-7mm |
5mm-7mm |
|
Crushing amount |
15-20（kg/h） |
20-25（kg/h） |
25-30（kg/h） |
25-50（kg/h） |
30-65（kg/h） |
50-80（kg/h） |
|

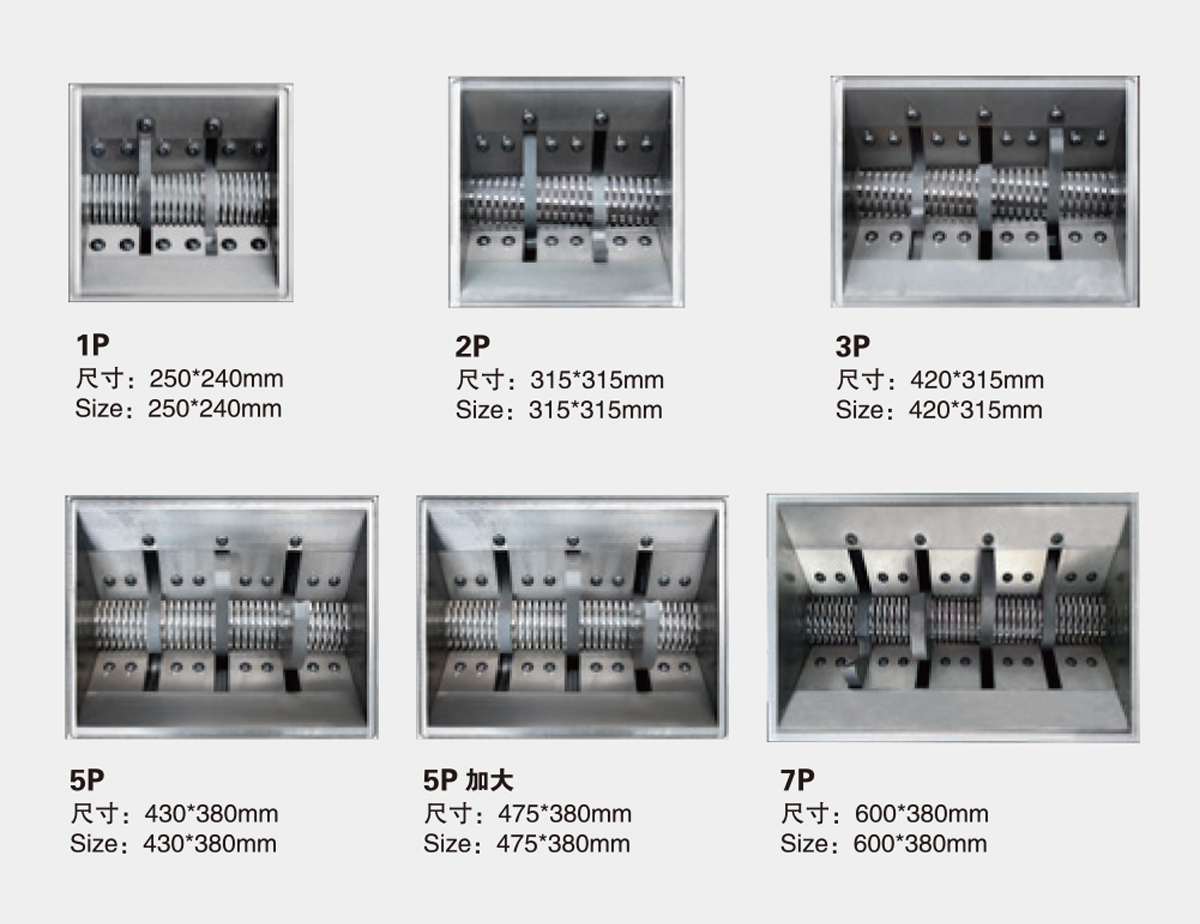

Warehouse size（length and width） |
250*240mm |
315*315mm |
420*315mm |
430*380mm |
475*380mm |
600*380mm |
|
Body dimensions（length, width, height） |
950*450*1250mm |
1100*500*1330mm |
1200*500*1330mm |
1300*600*1510mm |
1320*620*1580mm |
1440*620*1580mm |
|
Bare weight |
190kg |
255kg |
305kg |
462kg |
506kg |
630kg |

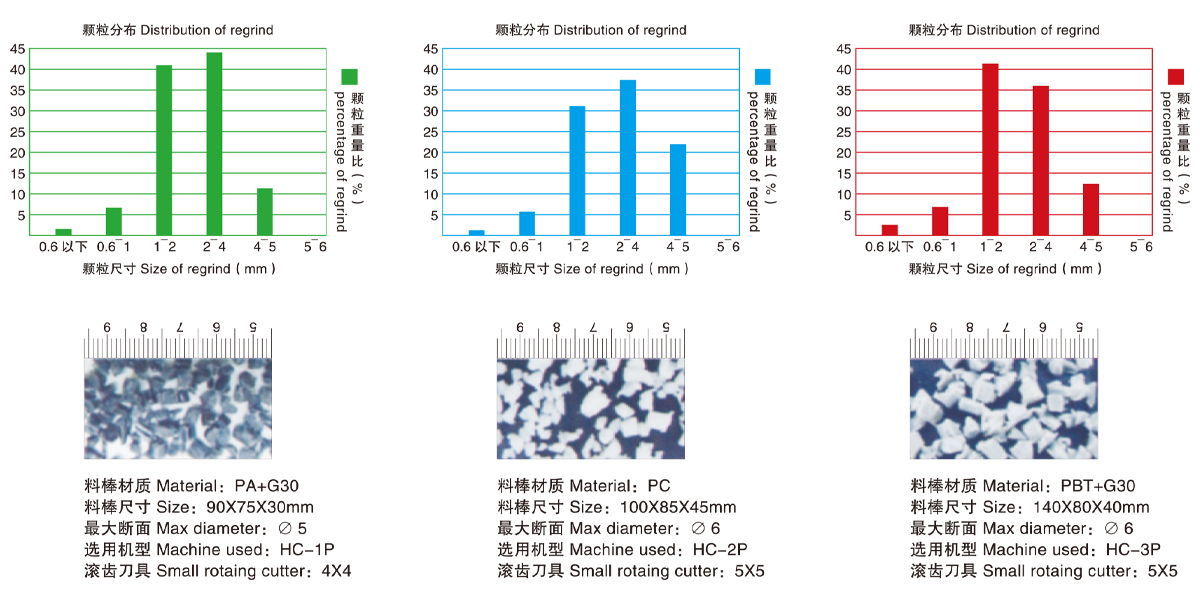

Test results
Always admired by customers, low speed mute crusher realizes environmental protection and energy saving.
This series machine is specially designed for grinding hard and brittle materials at the machine edge.Extremely slow rotor speed and screen-free operation provide low noise and low dust even for the most solid and brittle materials.
High quality motor
Using self developed motor to provide high-quality power system,more reliable performance
The excellent performance of each crusher is inseparable from the core support of power.Only the crusher that has experienced time inspection and certification can be recognized by customers.Our choice of motor,very strict control of its quality,so that we have their own competitive in the field of crusher machine.
Electrical details
Details determine success or failure,Hongchuan Machinery crusher is the most reliable because of our pursuit of high quality.All the electronic control accessories are high-end products such as Schneider and SIEMENS.
Anatomical chart
The solution
